The installation of modules to be used in the airVentDisplay technology ecosystem has been done by either stripping cables and soldering or using posi tap connectors. To ease the installation process, a JunctionBox is made.

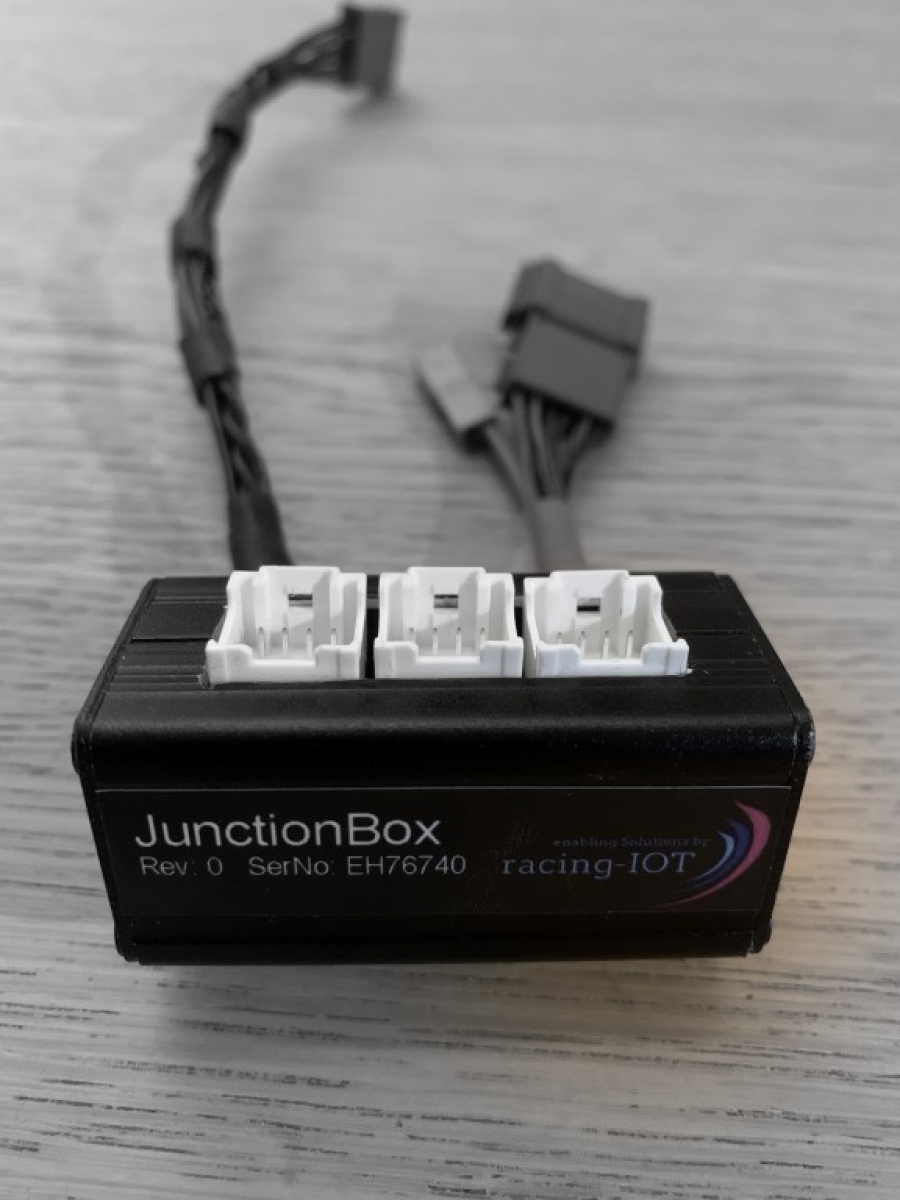

The JunctionBox is installed using original BMW Steering Angle Sensor (LWS) connectors. Simply de-attach the connector in the LWS, plug it into the JunctionBox, and finally plug the JuctionBox into the LWS.
The JunctionBox can take up to six modules, and distributes CANH, CANL, DBUS, K/IBUS, +12V and GND to the attached modules.
The JunctionBox with four modules.
The JunctionBox connected with four modules and showing the connection to the LWS.
airVentDisplay by racing-IOT emerged as a result from a pure enthusiast driven project, based on the need for displaying and logging data from the E46 CAN bus related to track day/race events.
THE PRODUCTS OFFERED ON THIS SITE MAY BE USED SOLELY ON VEHICLES WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY.
airVentDisplay by racing-IOT
Norway
Mail: sales@airventdisplay.no
Phone: +47 TBD
Discover the amazing amount of information available on the E46 CAN bus, made easily available via a touch screen embedded in the E46 air vent console.
Enable the MK60 CAN bus data stream in a non-standard E46 configuration, made available by a dedicated custom made MK60 emulator.
