Bluetooth LE for Harry's Lap Timer

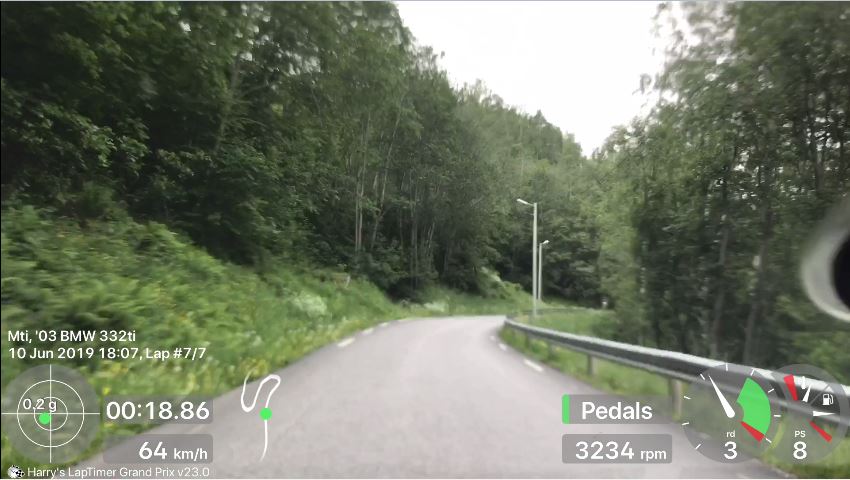

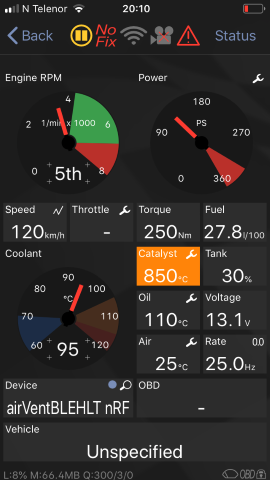

The following measurements are streamed to Harry's Lap Timer (HLT) over Bluetooth LE with 25Hz:

• RPM
• Speed
• Throttle Position
• MAF
• Wheel Speed Front Right
• Wheel Speed Front Left
• Wheel Speed Rear Right
• Wheel Speed Rear Left
• Steering Rate
• Steering Wheel Angle
• Yaw Rate

The MAF is an estimated value of MAF, based on the CAN data for engine power and torque.

The following measurements are streamed to HLT over Bluetooth LE with 1Hz:

• Engine Temperature
• Oil Temperature
• Fuel level

The following GPS data are streamed to HLT at 10Hz:

• GPS time
• GPS speed
• GPS lon
• GPS lat
• GPS hdop
• GPS alt
• GPS course

Please note that an external GPS unit is required, e.g. Adafruit Ultimate GPS Breakout - 66 channels w/10 Hz updates - Version 3.

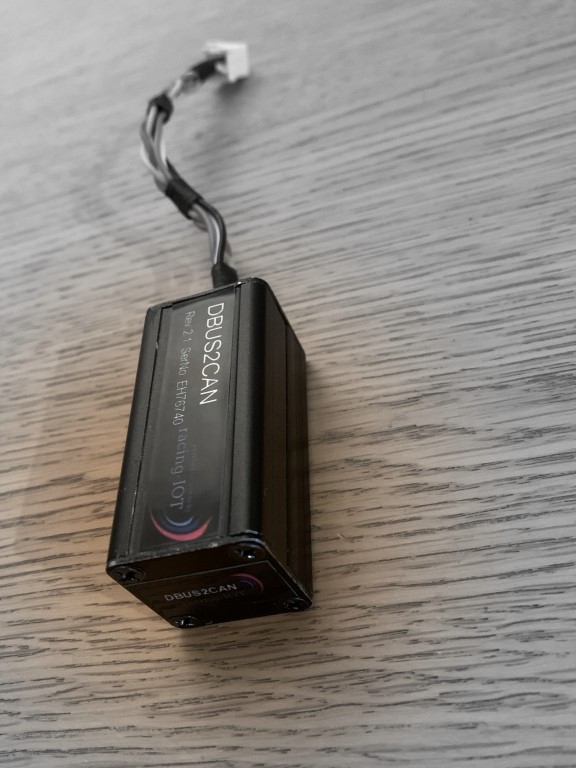

The following measurements are optionally streamed to HLT over Bluetooth LE with 1Hz (additional D/KBUS2CAN module needed):

• Cat temperature
• Intake Air Temperature (IAT)
• Battery Voltage

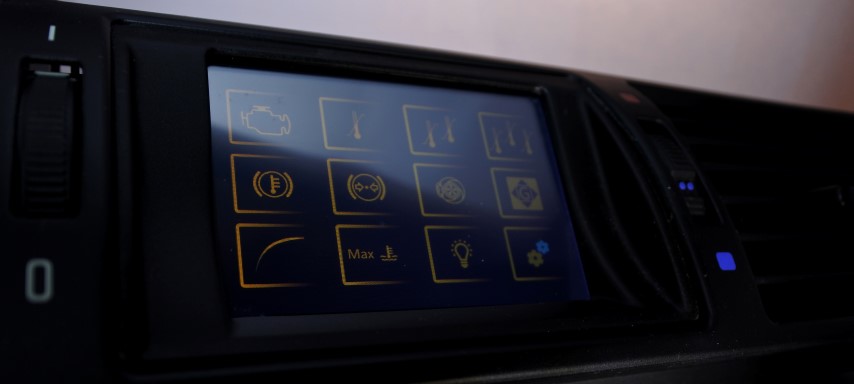

If future versions of HLT enables support for other measurements (like oil pressure, brake pressure etc.), they will for sure be supported by airVent Display.
